| 一.产品概述 | ||||||||||||||||||||||
| 1.产品适用范围 | ||||||||||||||||||||||
| HLR6100-1ATUBCF-AC208/240功率继电器1A为1极.2A为2极,额定电流30A 以接头端子(T型)为主.螺丝端子(B型).印刷电路板用端子(P型)等. 适用于压缩机,加热器控制,马达,电源控制,复印机,传真机,照明灯控制,微波炉,包装机和食品加工机械等电器及设备的单相负载电路的控制. 本产品具有体积小.重量轻,线圈功耗低,触点负载大,抗冲击能力强.高可靠性等特性. | ||||||||||||||||||||||
| 2.产品型号及其含义 | ||||||||||||||||||||||
* 包装方式：（-：表示整箱包装； Y:表示单只独立纸盒包装） | ||||||||||||||||||||||
Applicable and Description

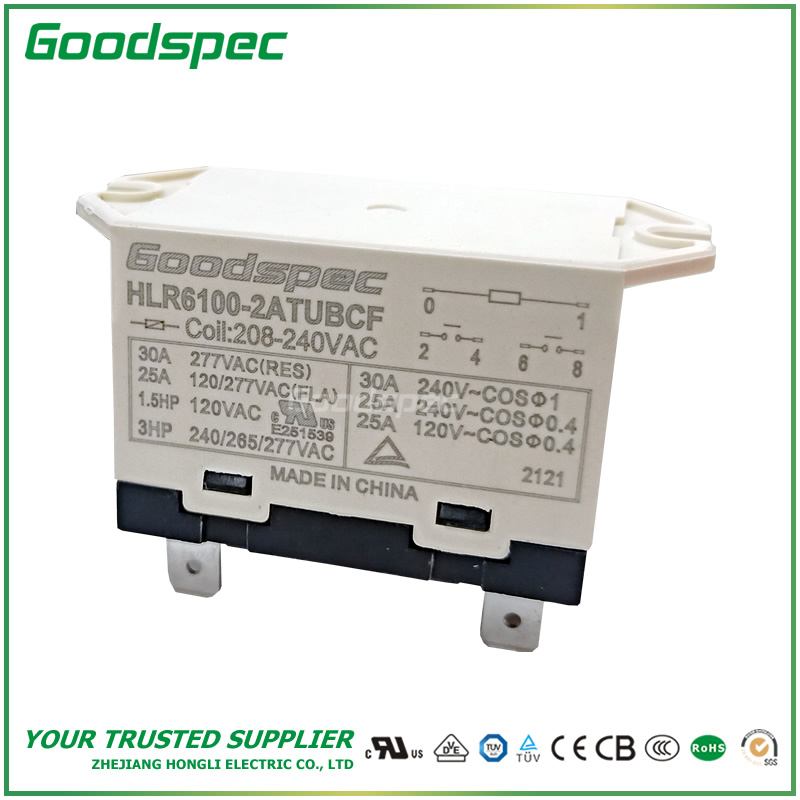

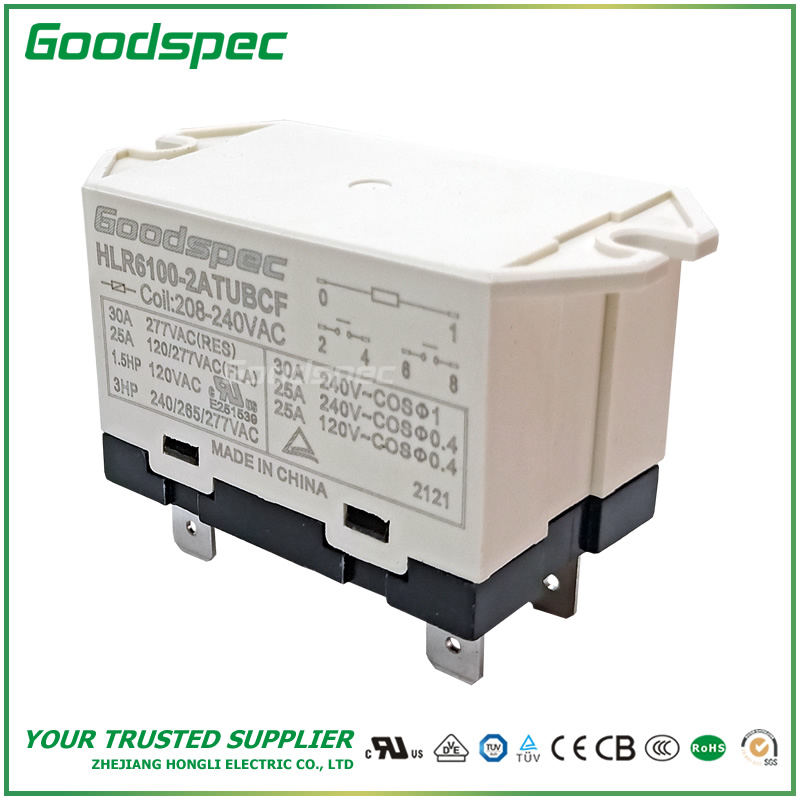

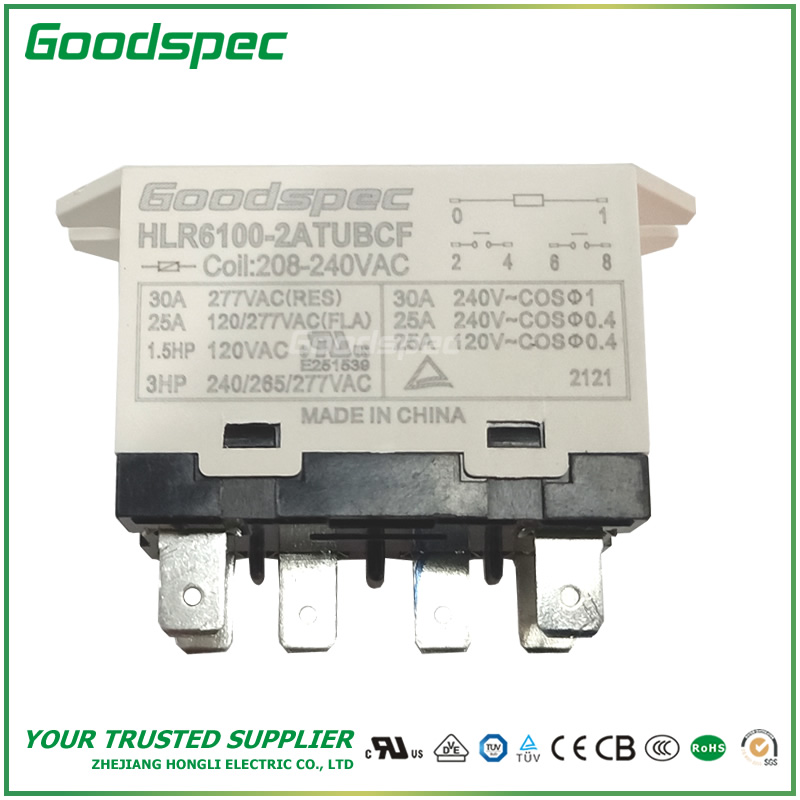

Applicable ScopeHLR6100-2ATUBCF-VAC208/240 High Power Relay 2A is 2 pole, nominal current 25A attaches the post (T) primarily, the screw post (B), the printed wiring board uses the post (P) and so on. Is suitable in the compressor, the heater control, the motor, the power source control, the duplicator, the facsimile machine, the flare control, the microwave oven, electric appliances and equipment’s and so on packaging machine and food processing machinery single-phase load circuit’s control. This product has the volume to be small, the weight is light, the coil power loss is low, the contact load is big, anti-impact ability, characteristics and so on redundant reliability. |
| Type and Meaning |
HL | R | 6100 | – | 2A | T | UB | CF | -VAC240 |
Hongli | Relay | Type | Packing Y :Individual Box Pack – : Factory Bulk Pack | Contact form 1A:SPNO 2A:DPNO | T:Quick-connect terminals | J：with test button UB: With bracket type
| Class F insulation | Coil control voltage：208/240VAC |
1、 Product Explanation And Main Technical Parameter
| ★ Rating of insulation voltage Ui ： 600V |
| ★ Rating of contacts voltage Ue ： AC 277V |
| ★ Rating of current： Ie=25A （ AC-8b ), Ith=30A |
| ★ Mechanical life＞ 10，000，000times |
| ★ Electricity life＞ 100，000times |
| ★ Coil working voltage scope: 70% ～110%Us |
| ★ Product coil working voltage Us=12,24,36,48,110/120,220/240VAC&VDC |
2、Conforms To The Standard
Conforms To National Standard And International Standard
| 1 、 Conforms To UL508, IEC60947, GB14048 Standard。 |
| 2 、Approved By UL,ROHS and ISO9001 System Certification(SGS)。 | |
| UL Files Number: E251539 |
3、Ordering Request
In Order To Guarantee You Purchase Right, Please Read The Specify Type Before Order.
Relay Specification Model, Pole Number, Coil Control Voltage, Rating Of Operating Current, Wiring Way(Terminal), Whether With Cover ,The Packing Way, Etc
If you request as follows: Nominal current: 25A, working voltage: 240/277V, pole number: 2 pole, coil control voltage:120VDC, wiring way: A group 1/4 ” fast attachment, load: The single-phase perception or the linear load, brings the test button, the insulation grade: CLASS F, packing: 120/each box (factory packing). Then you may the shaping be：HLR6100-2ATUBCF-VAC208/240
Lifts The Samples As Follows (Contains Derivation Type From This Model)
Rating of Current Ie | pole number | Rating of Coil Control Voltage | Control Motor Power | ||||
12VAC | 24VAC | 120VAC | 208/240VAC | 277VAC | 240VAC | ||
30A | 2P | HLR6100-2ATNBCF-VAC12 | HLR6100-2ATNBCF-VAC24 | HLR6100-2ATNBCF-VAC120 | HLR6100-2ATUBCF-VAC208/240 | HLR6100-2ATNBCF-VAC277 | 2.5Kw |
